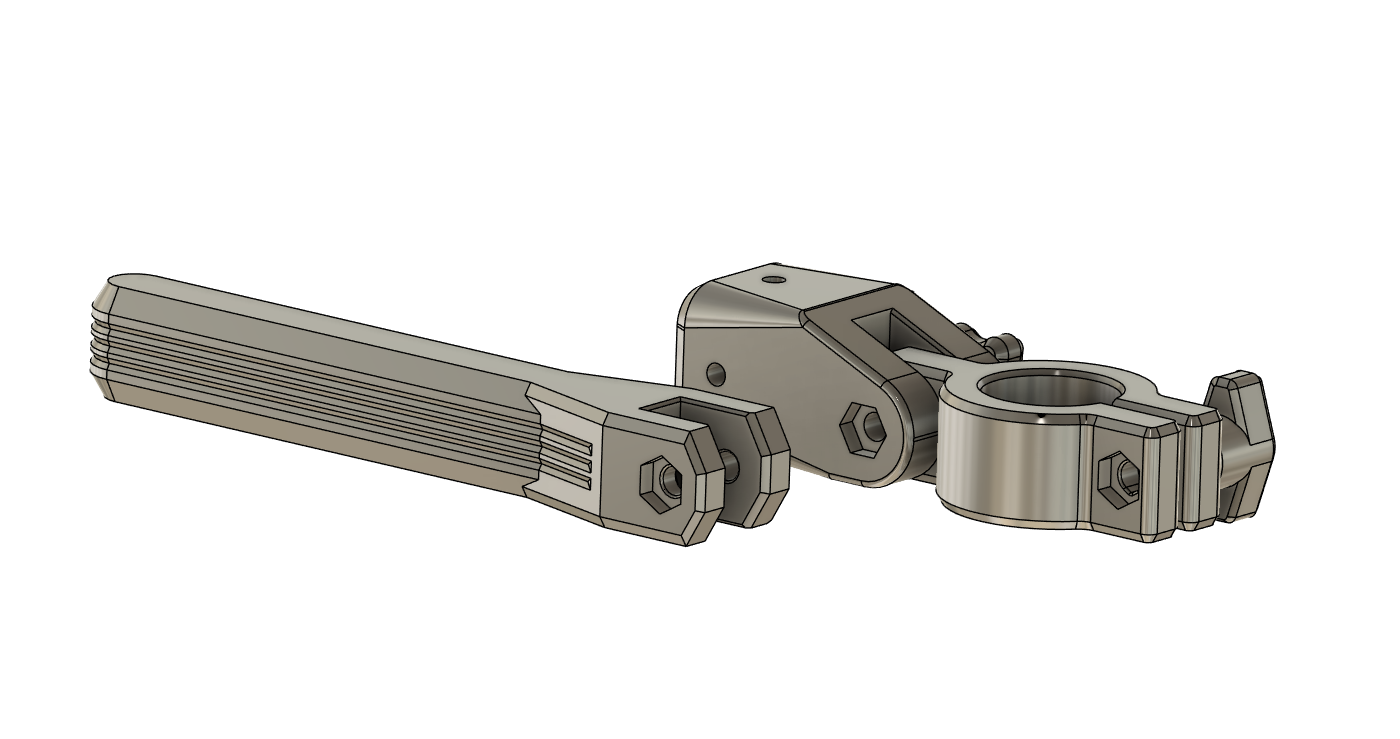

LIVESCOPE HANDLES-3D PRINT FILES

The BrowneBilt Livescope handles have been on the market for years and has proven itself out in the field.  Print out of 98A TPU for best performance.

This file package includes

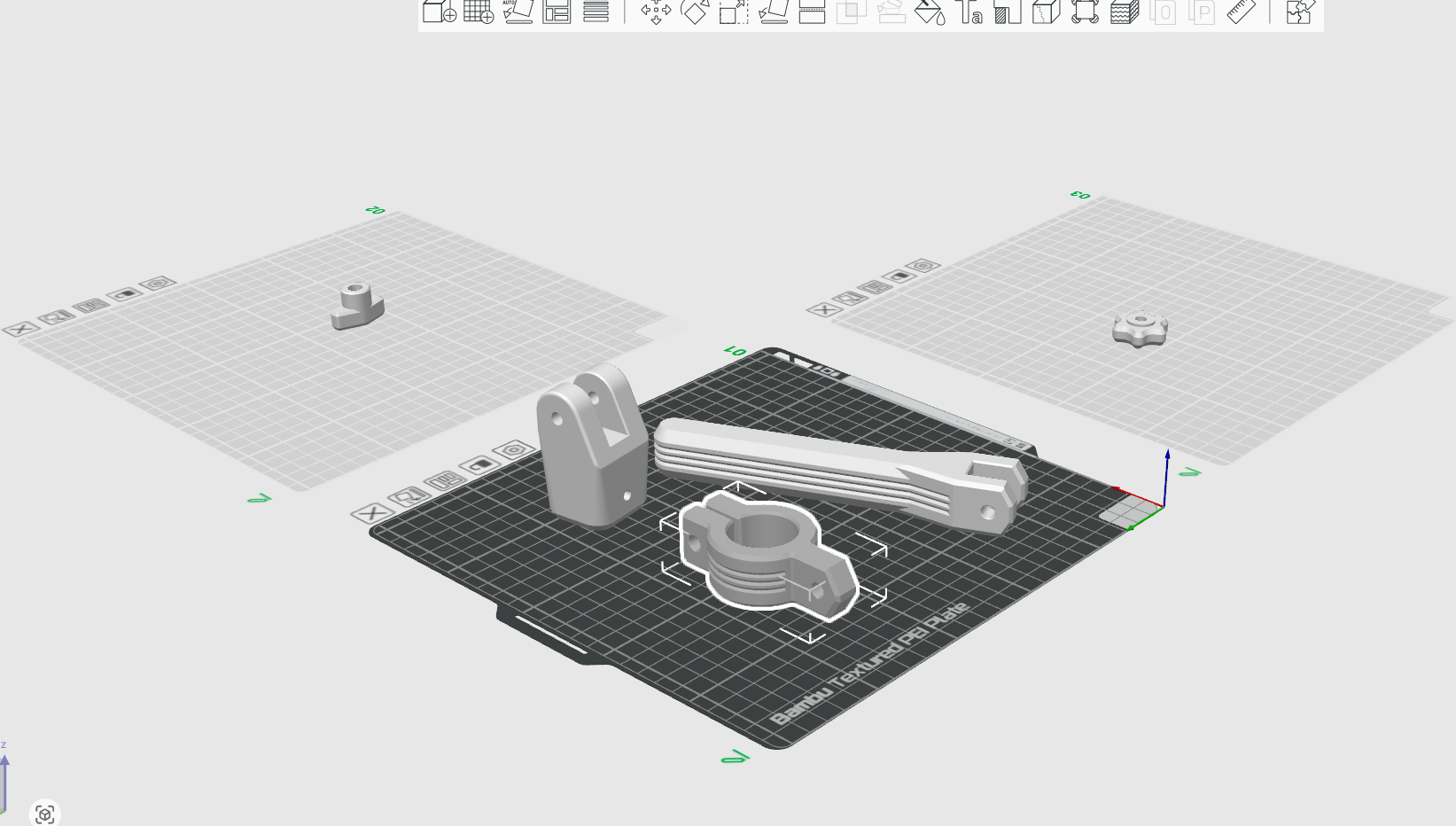

(1).3mf of all Parts and (5) individual .stl files

The Knobs require a pause in the slicer to add the 1/4-20 nut.  The Star Knob has a .22"Ø hole when is designed to friction fit onto the threads, preventing untwisting under vibration.  If printing with harder material, it is suggested to chase threads with the bolt, threading into the nut first.

 Hardware required:

(2) 1/4-20 Hex Nuts

(2) 1/4-20 Hex head bolts 1-1/2" long

+(summer handle)

(1)1/4-20 Hex head bolt 2" long (summer Handle)

(1) #8x3/4" long self tapper

Optional:

(2) 1/4" Thread Protectors

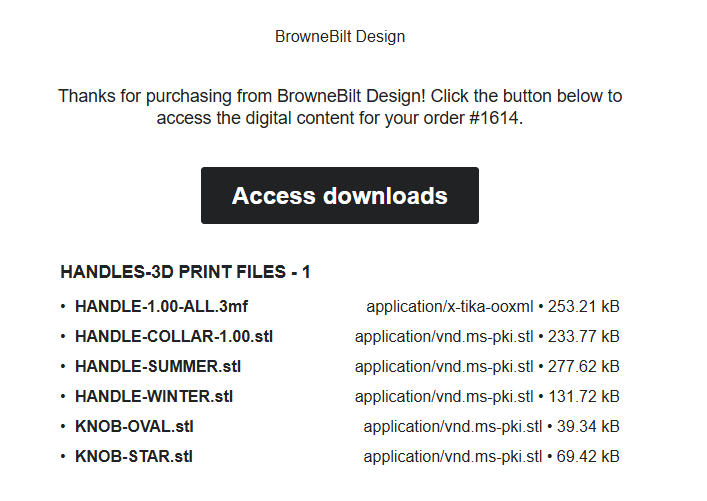

After purchasing, an email will be sent with a link to download your content.

All files are for Non-Commercial use.
