Garmin Livescope Ice Bundle Transducer Quick Attach Mount

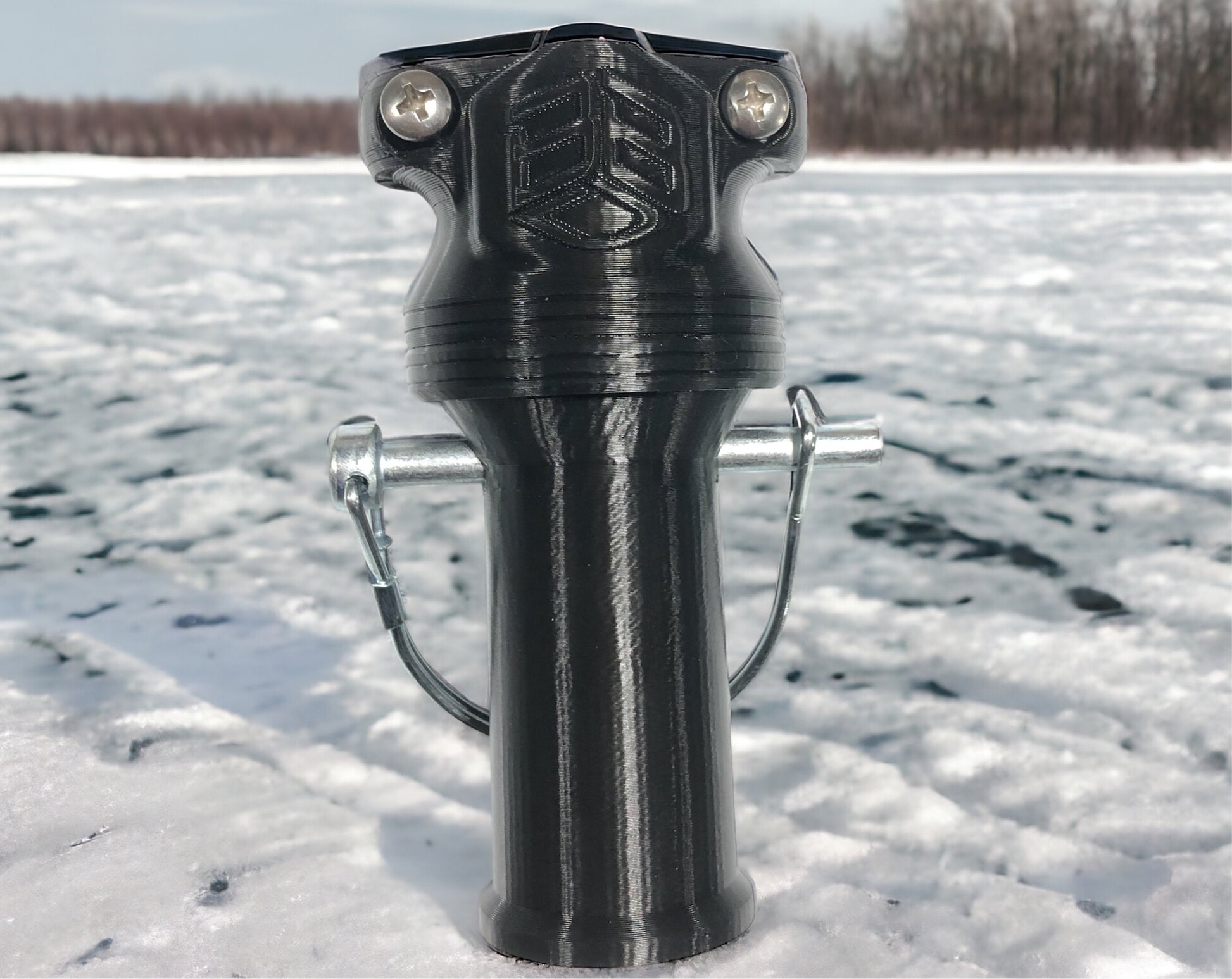

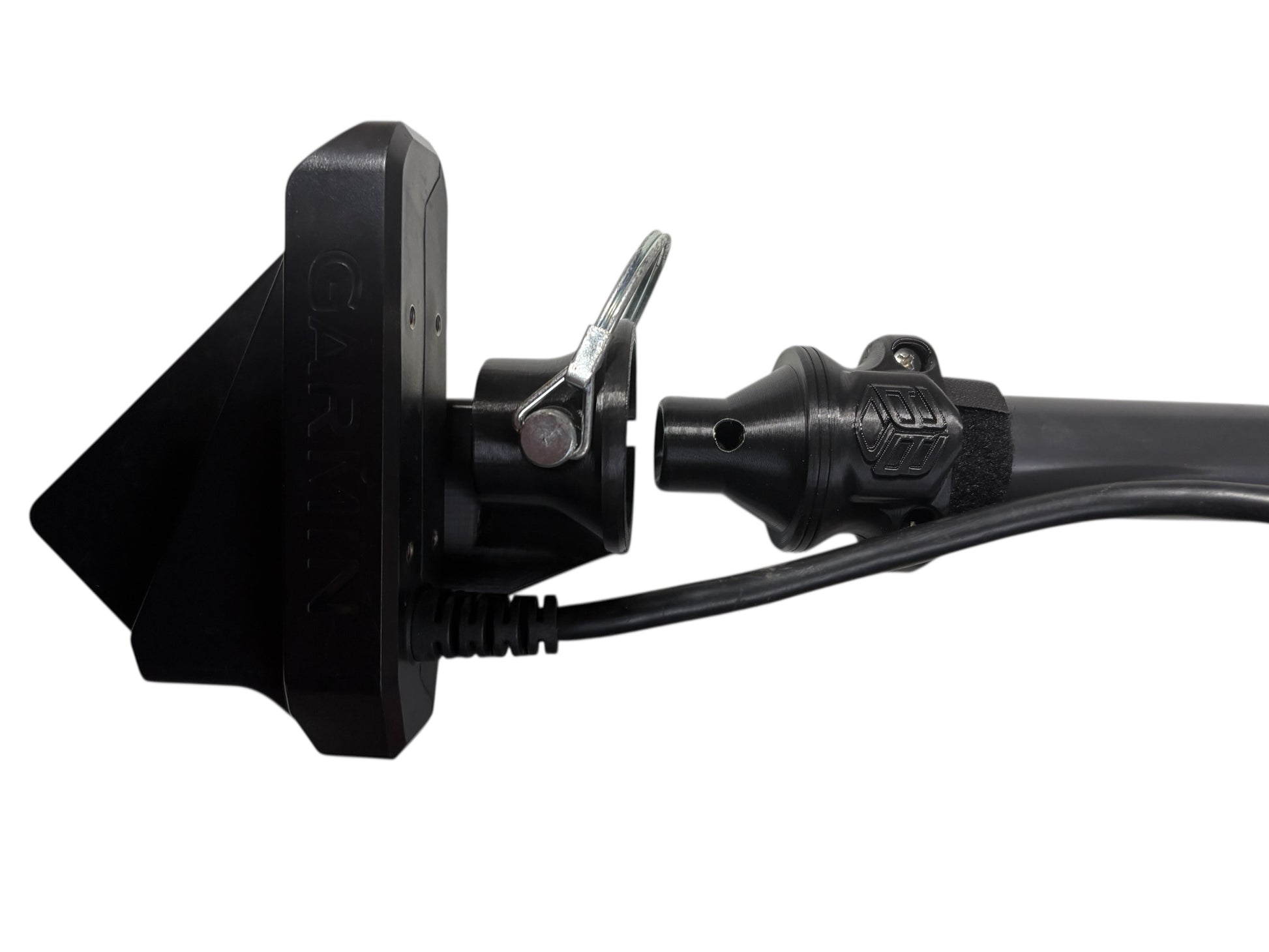

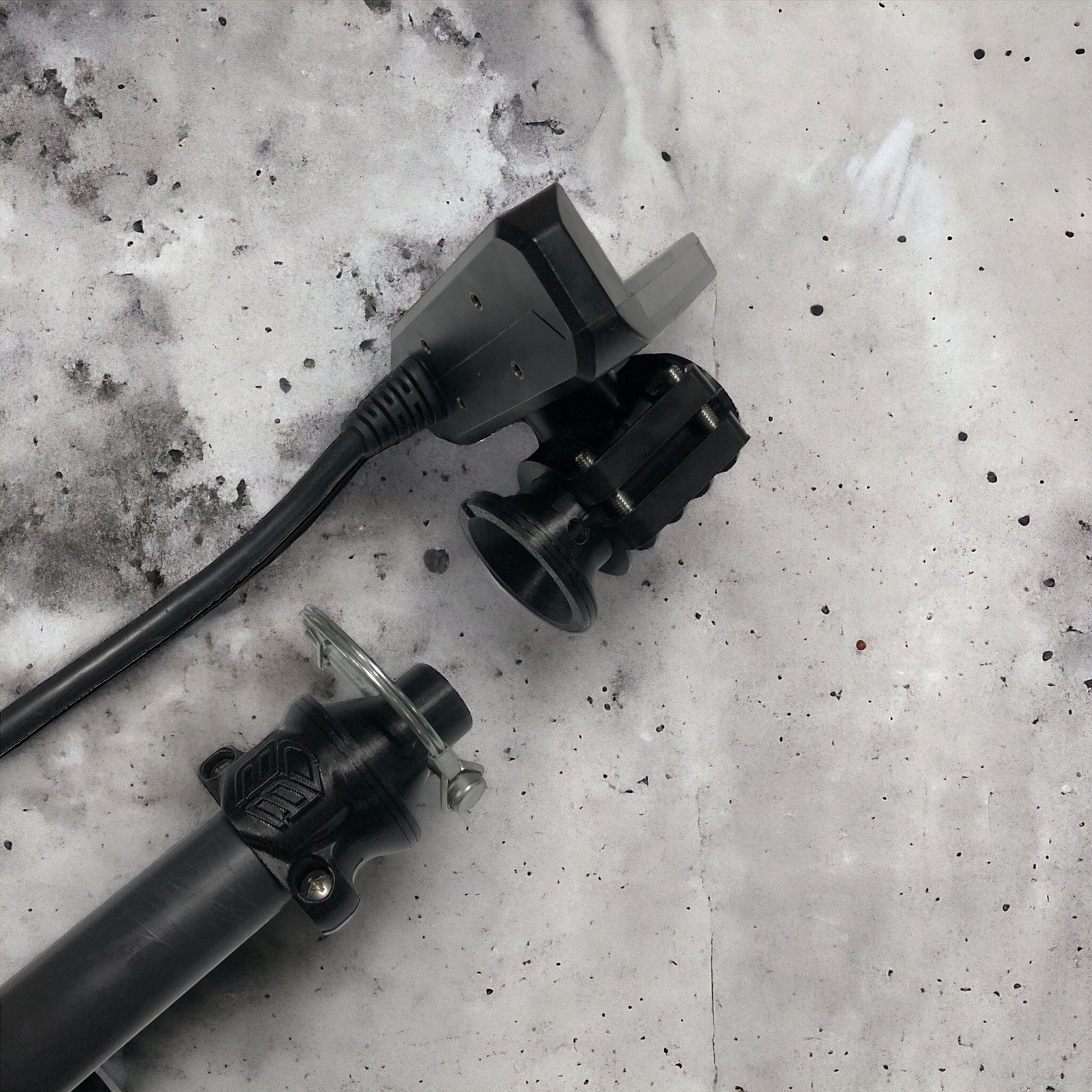

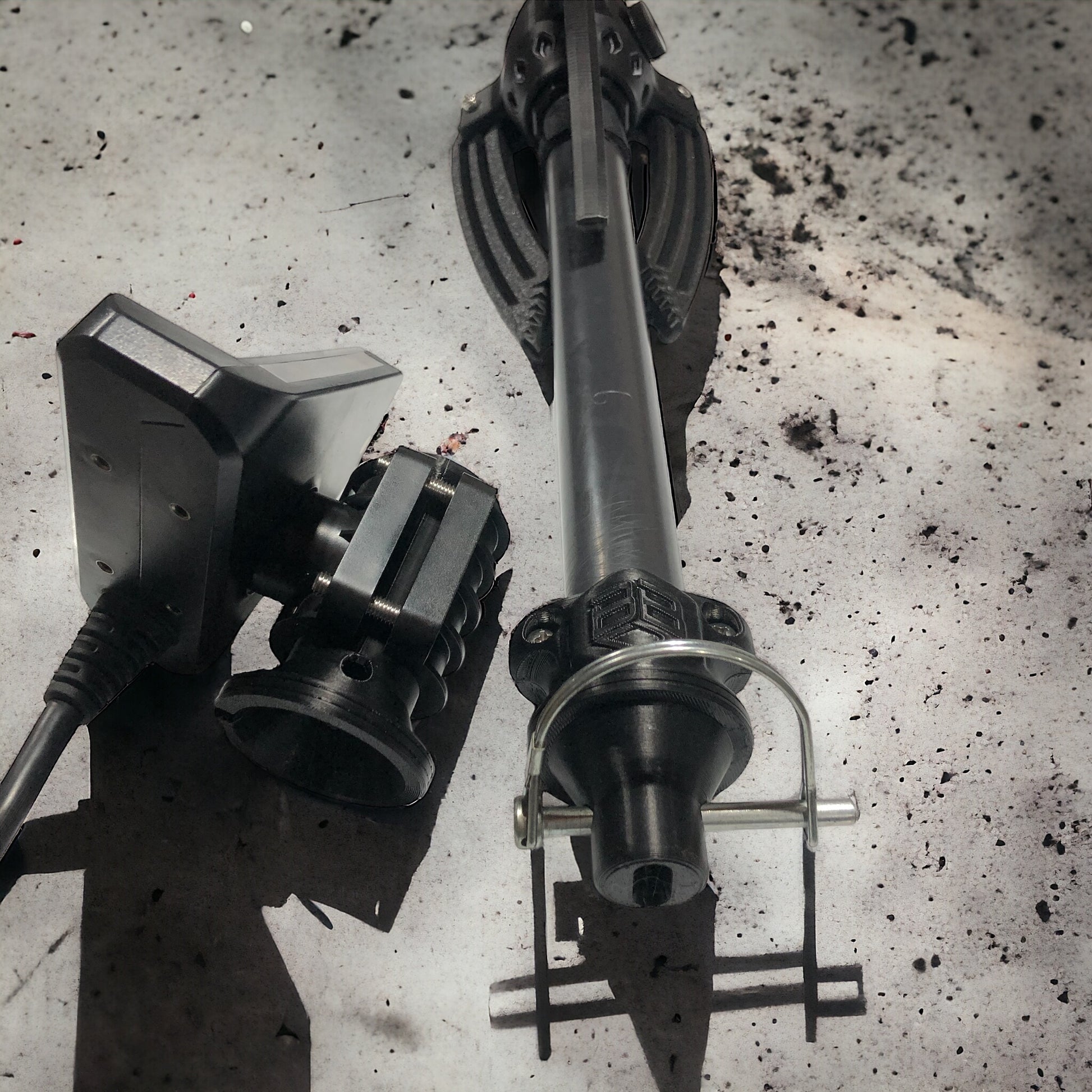

The Quicktach Pole Mount enables the Transducer to be removed and stowed away seperate from the pole.

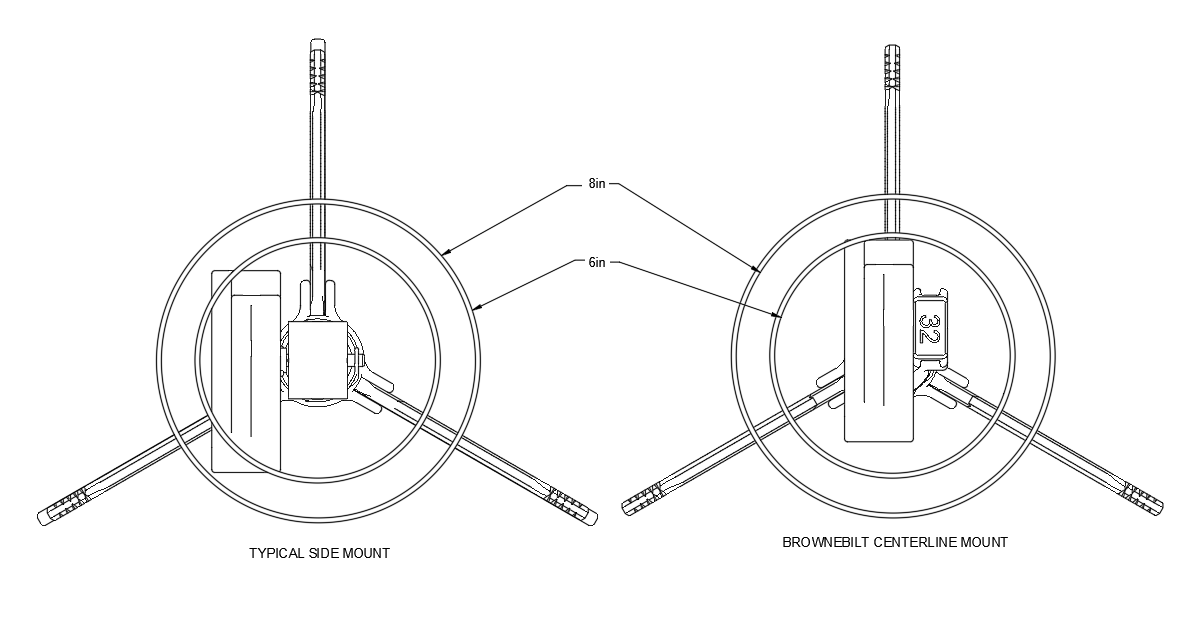

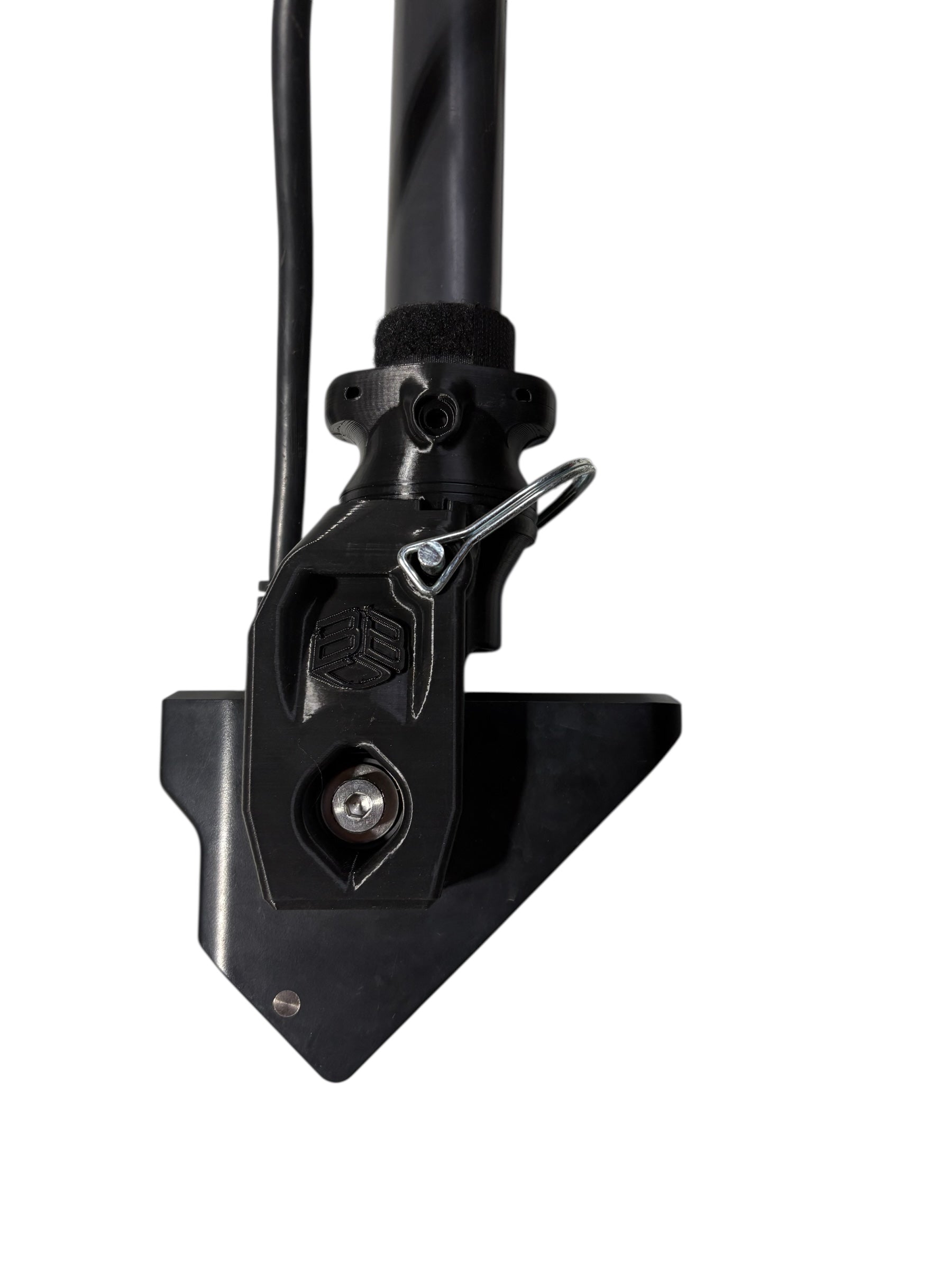

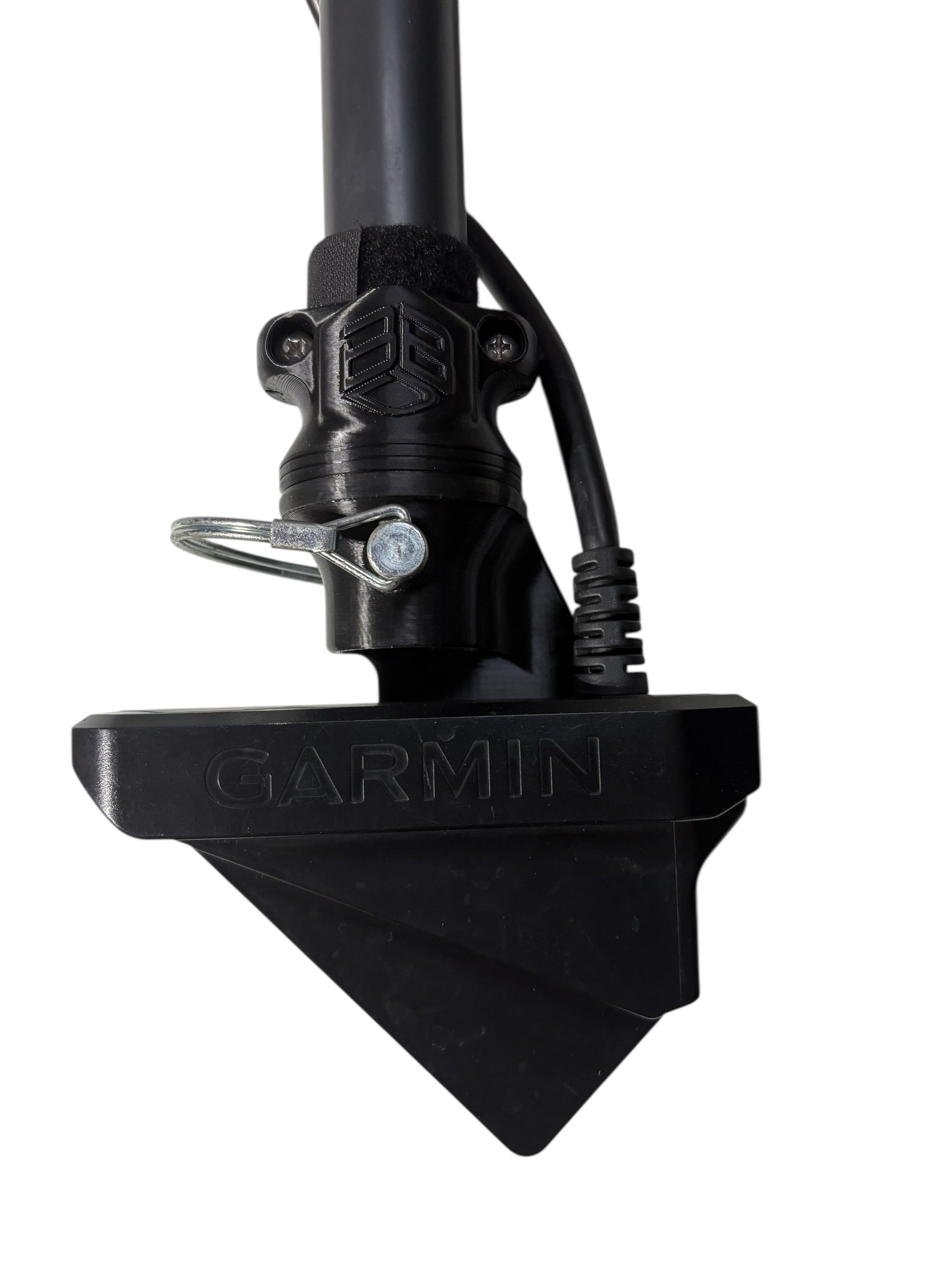

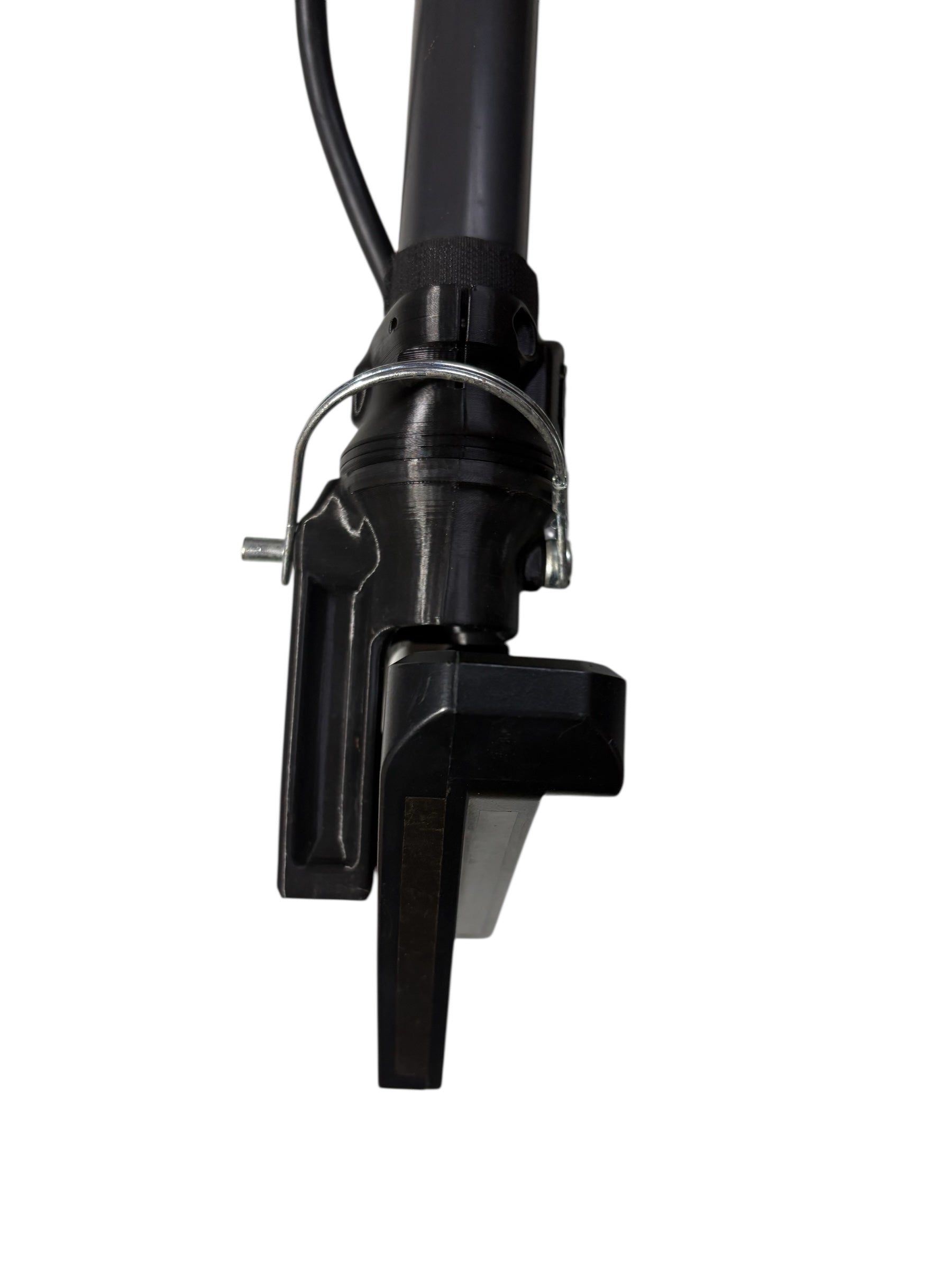

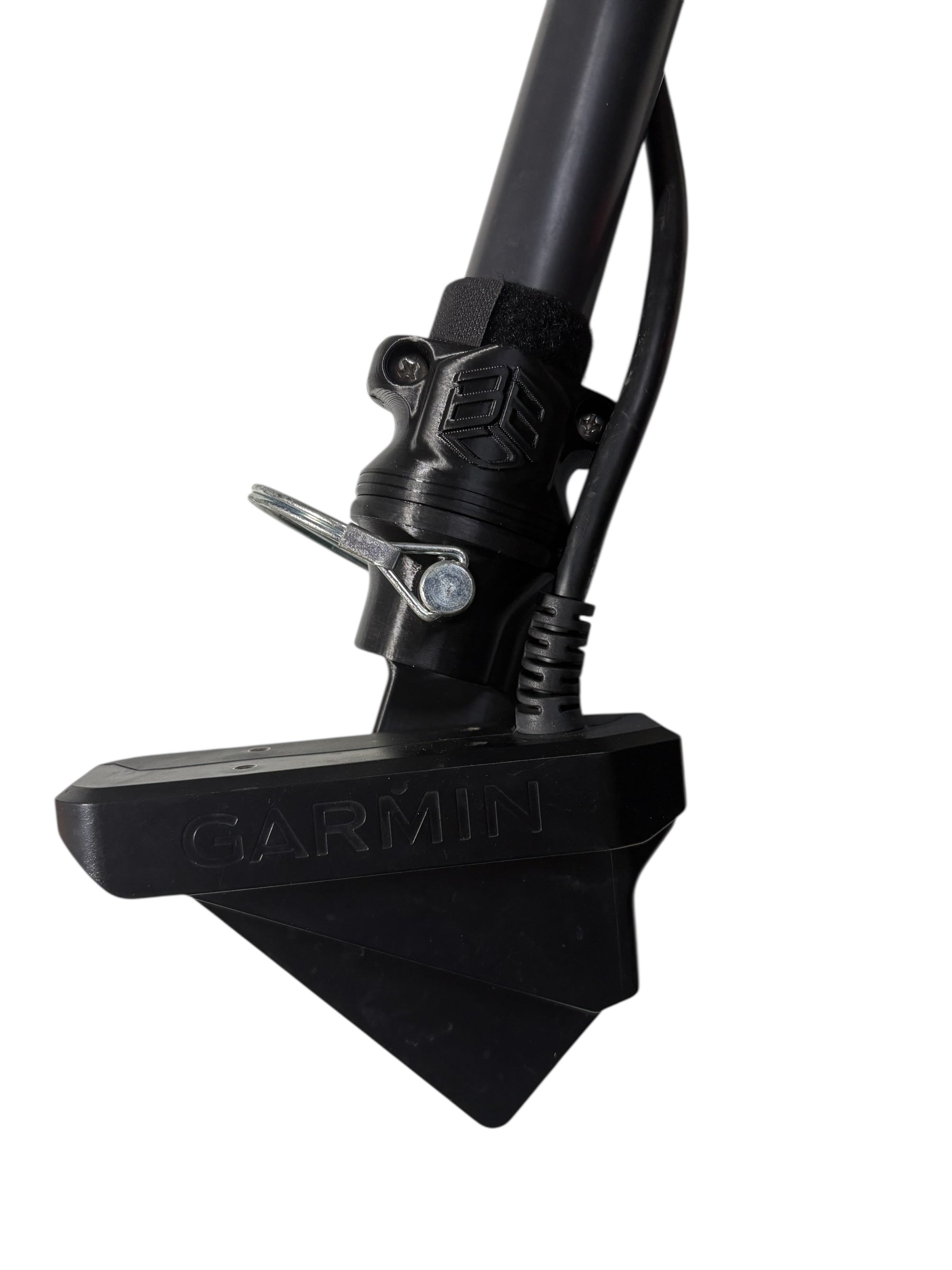

The Centerline LVS32 Mount connects the LVS32 transducer directly using the factory shoulder bolt and rubber washer(not included). This Mount places the Transducer directly under the center of the pole which reduces the transducer hitting the ice, especially 6” holes.

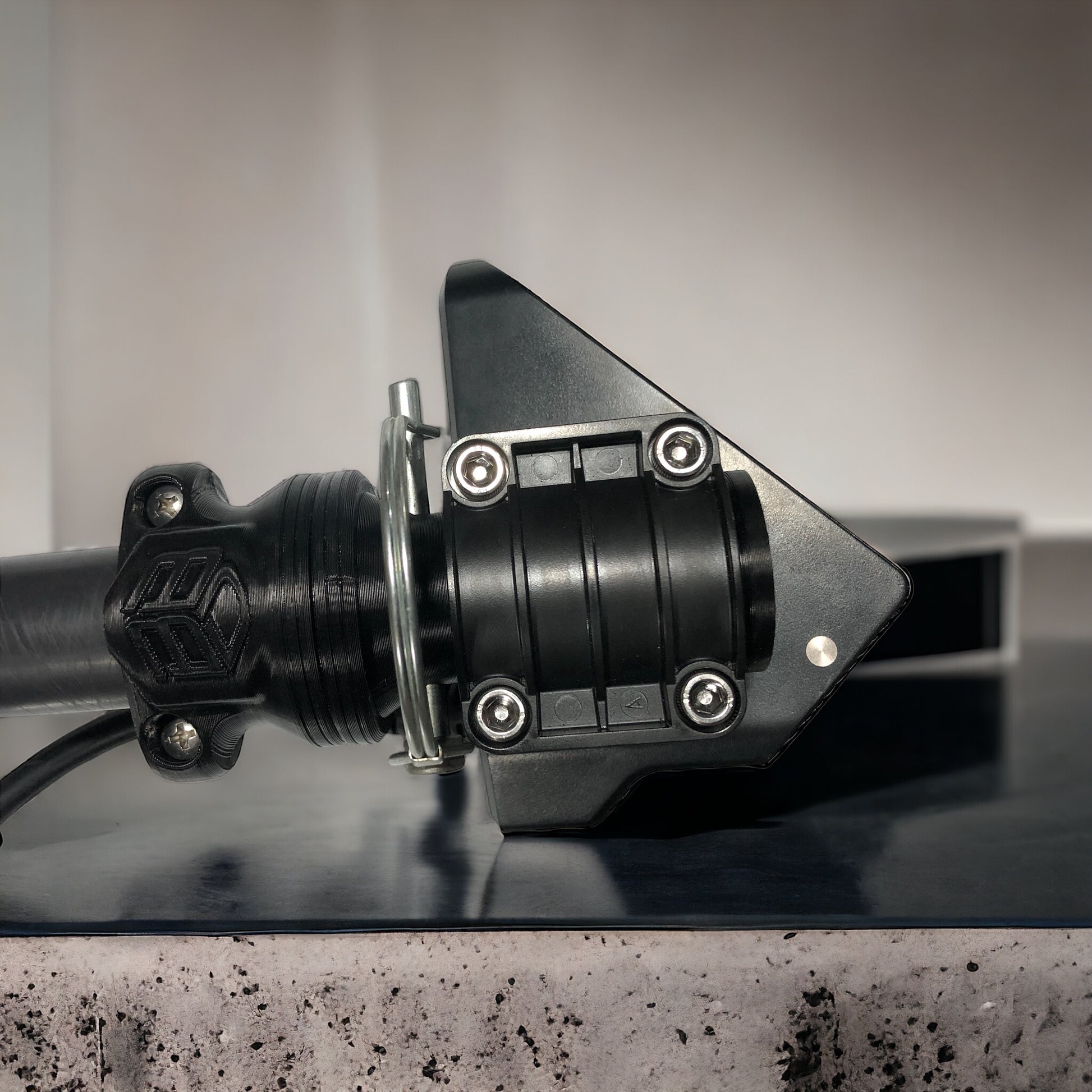

The Trolling Motor Clamp Mount uses your factory trolling motor clamp mount(not included)

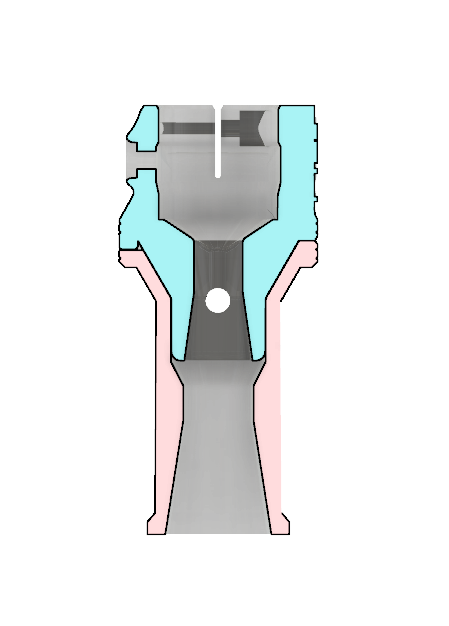

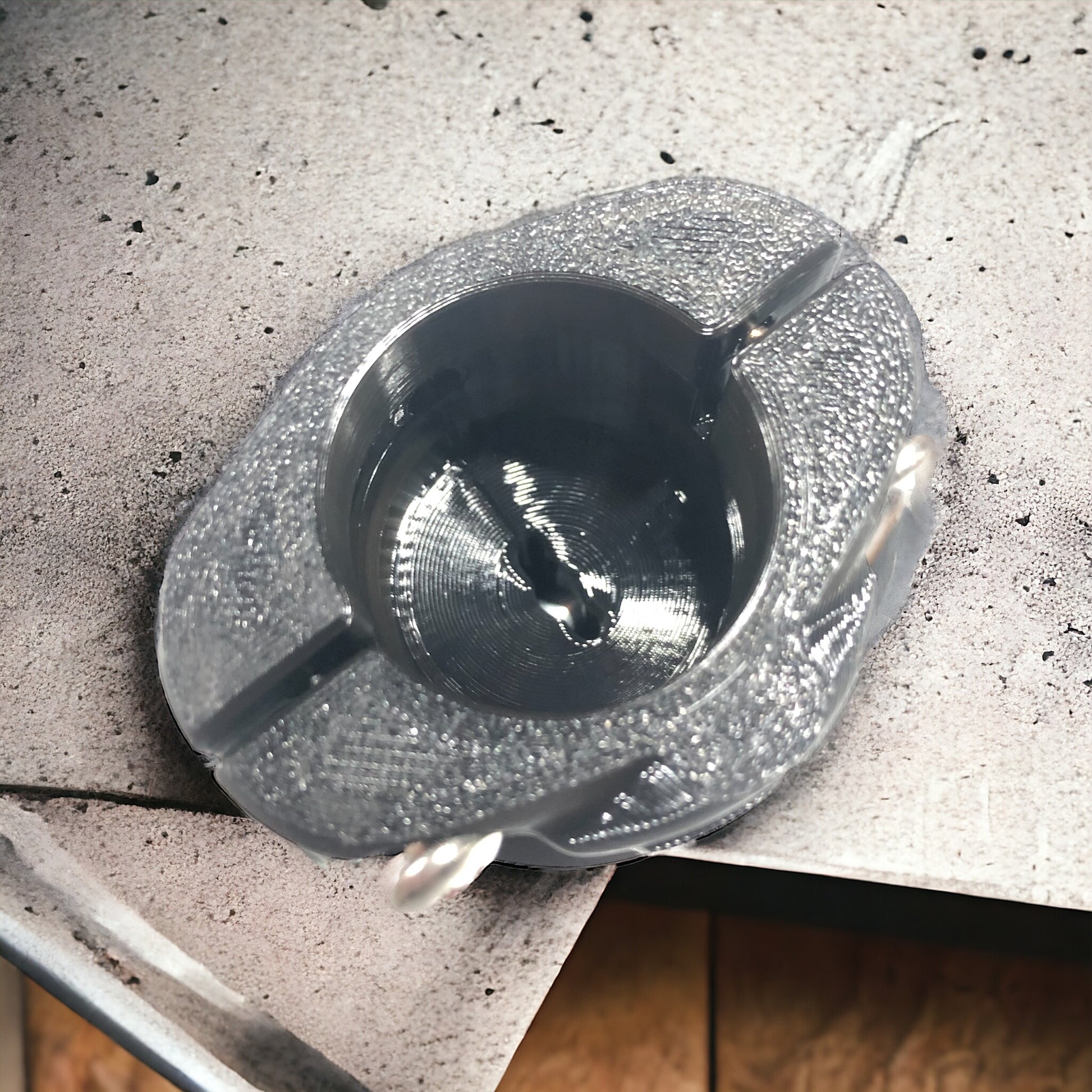

Excellent Drainage.  Because the Ice Bunde Pole is hallow, a key feature is to allow quick drainage.

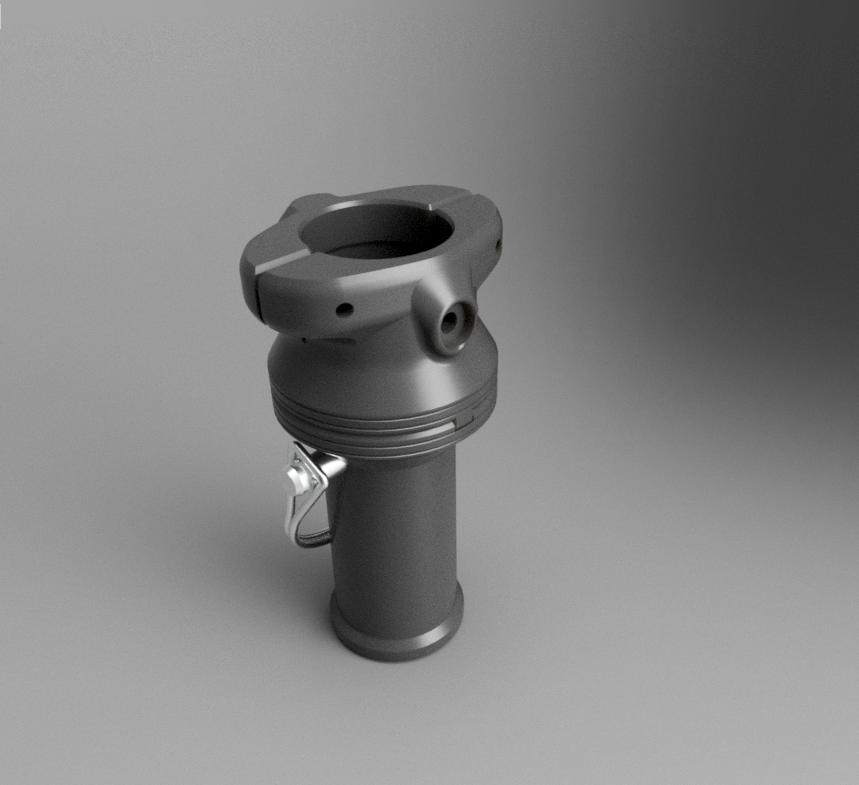

3D printed out of TPU.  This is a very durable material but difficult to print therefore you do not see this material being used by competitors.

Installation:

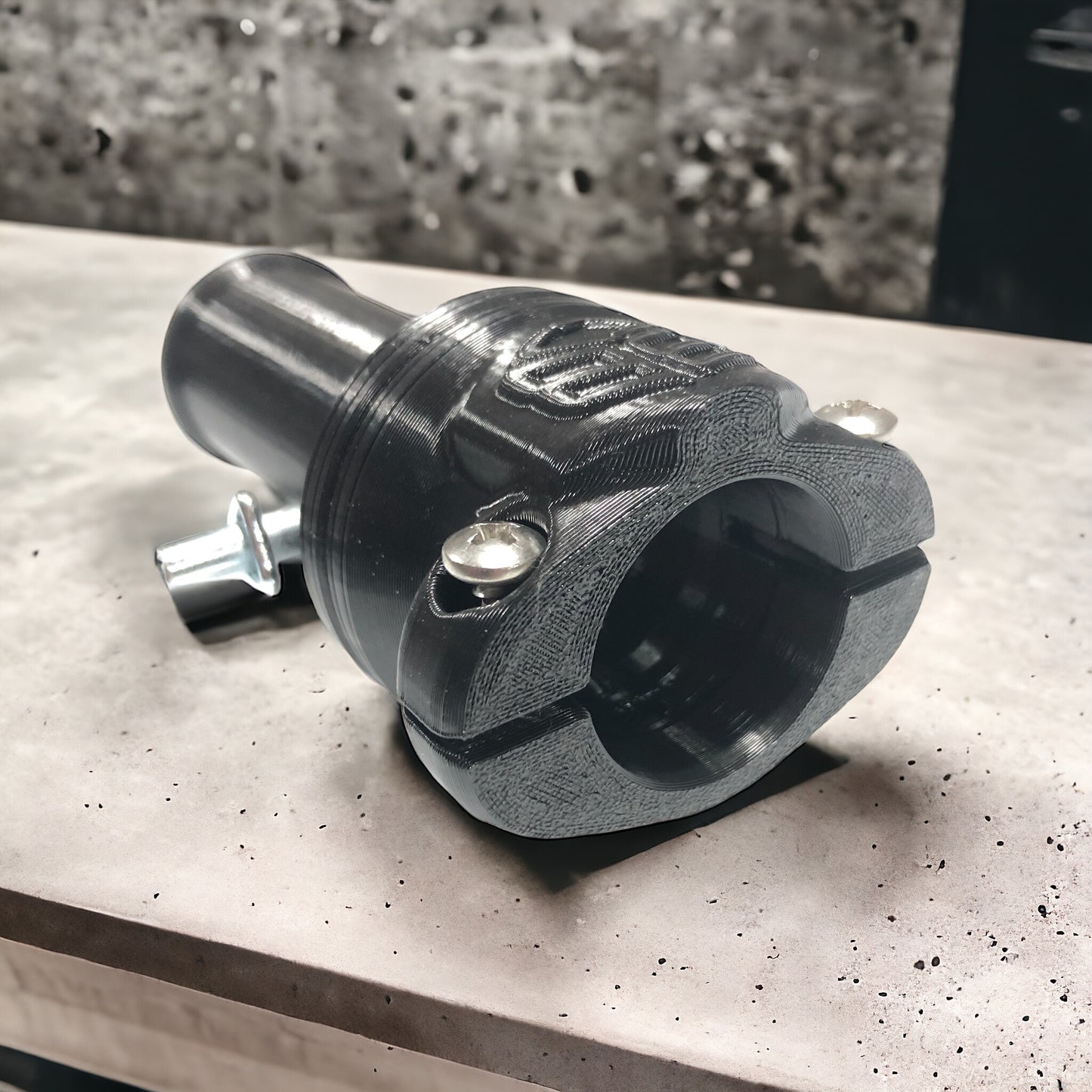

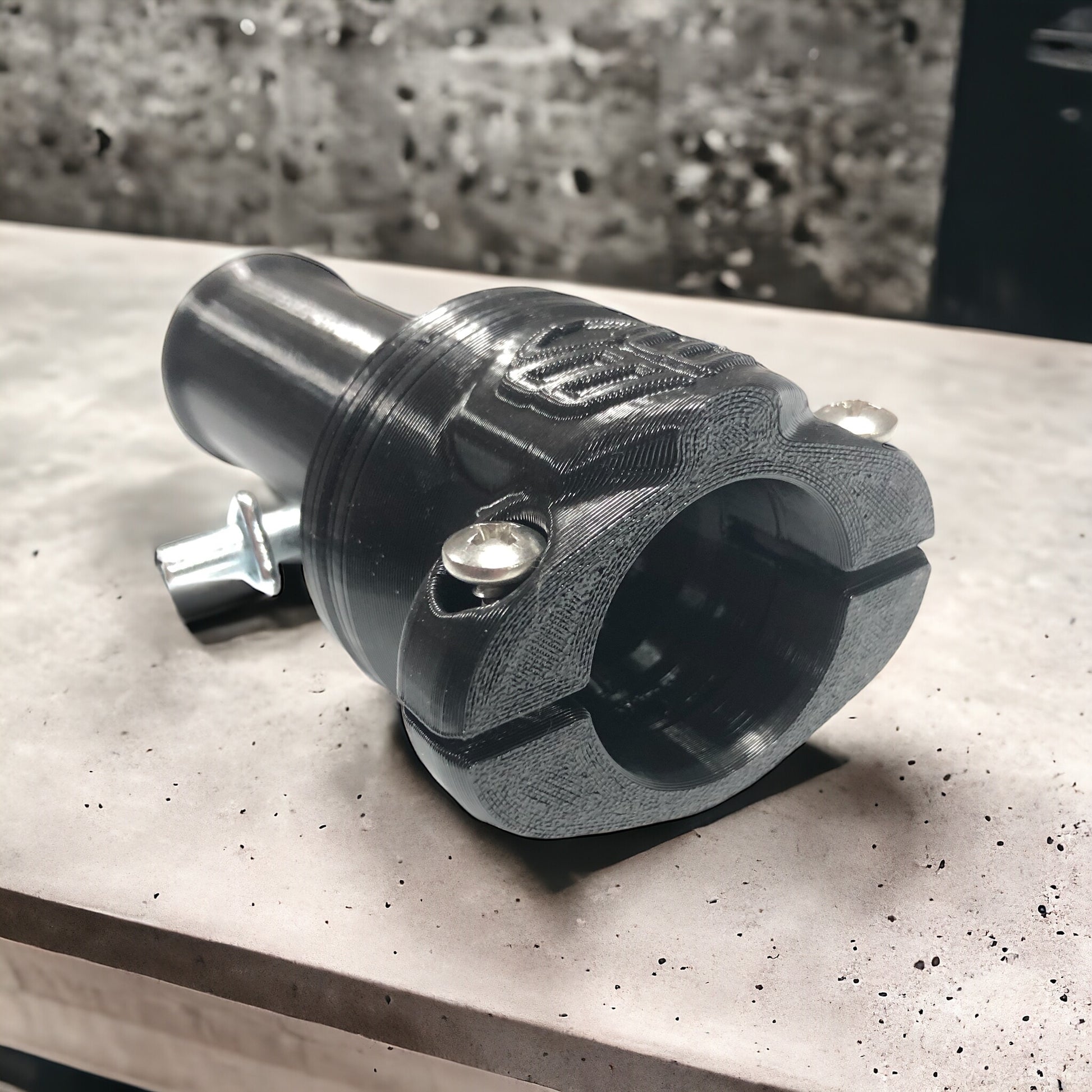

•  Evenly clamp down on the pole using the provided Stainless Steel Phillips screws.
• For permanent mounting, use the provided self tapper
• Install the factory mount and clamp onto the adapter mount centering it on the D Pin holes.  It is recommended to use the rubber wrap that came with the ice bundle transducer kit.  This will help cushion the mount but not required
• Install D Pin and ensure transducer clicks over without bending the mount.
• The alignment pin will ensure the transducer is always installed the same orientation, adjust handle accordingly once and its ready to fish!
