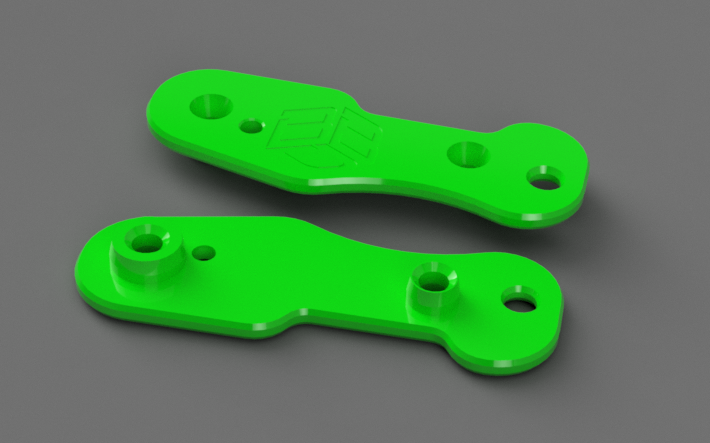

John Deere AMT 600/622/626 Hydraulic Brake Conversion Spacer/Drill Jig

This kit makes converting generic atv calipers to fit the John Deere AMT a breeze.  The conversion required drilling and tapping an additional hole in the caliper bracket for correct hole spacing.  This is easily achieved using this spacer as your drill jig using the .201” hole.  Built in alignment dowels makes this spacer precise and easy to install.

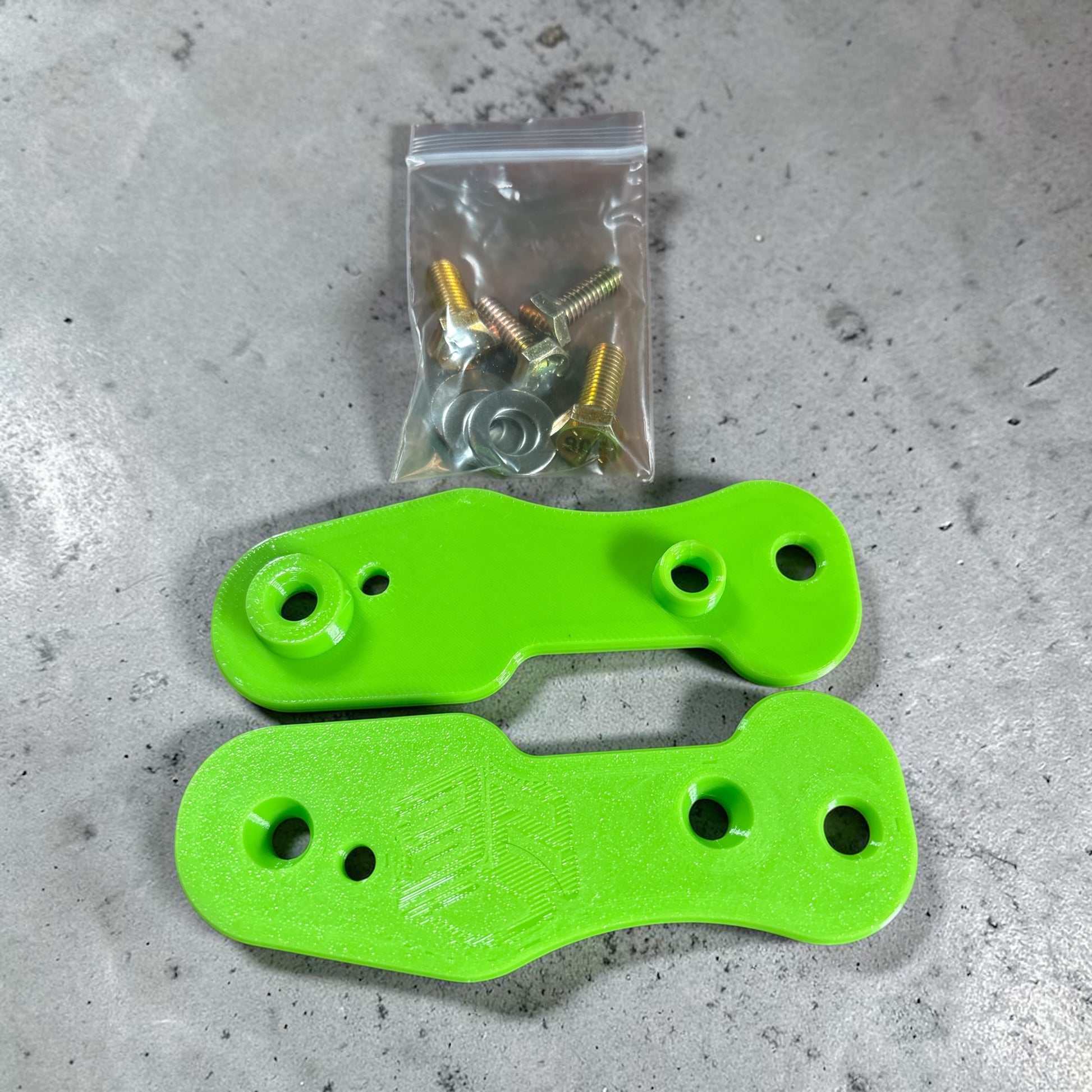

Kit includes

2-95A TPU spacers

2-5/16"-24 X 3/4” Long Grade 8 bolts

2-1/4"-20 X 3/4” Long Grade 8 bolts.

What else is required for the swap?

1-ATV Master Cylinder

https://www.amazon.com/dp/B0C38BVVGW/?coliid=I2GZRJPW52WYCI&colid=4GLVFR8UU7EU&psc=1&ref_=cm_sw_r_cp_ud_lstpd_ZMJBT4JTSPWX4EAEKEZV

1-Pair of ATV Calipers

Amazon.com: Front Left Right Brake Caliper Assembly for Polaris ATV Sportsman 400 450 500 600 700 800 500 Magnum 330 ATP 330 500 Tractor 500 6X6 1910841 1910842 : Automotive

1-M10 Tee

https://www.amazon.com/dp/B07T3TW91H/?coliid=I2XTEQHQVWLUAQ&colid=4GLVFR8UU7EU&psc=1&ref_=cm_sw_r_cp_ud_lstpd_ZMJBT4JTSPWX4EAEKEZV_2

2-M10 X 15.75" Long Braided Brake Hoses

Amazon.com: Motoforti 15.75" Length 10mm ID Motorcycle Hydraulic Brake Line Oil Hose Pipe Stainless Steel Braided Cable for ATV Motocross Sport Bikes Silver Tone : Automotive

1-M10 X 86" Long Braided Brake Hose

https://www.amazon.com/dp/B088B3TT5F/?coliid=I2YQQOSU928LBP&colid=4GLVFR8UU7EU&psc=1&ref_=cm_sw_r_cp_ud_lstpd_ZMJBT4JTSPWX4EAEKEZV_3

Approx. 6oz of Brake Fluid

What tools are required?

8mm Allen (for stock caliper bolts)

6mm wrench/socket (for new master cylinder clamp bolts)

12mm wrench/socket (for banjo bolts)

1/2" wrench/socket (for new 5/16-24 bolts)

7/16" wrench/socket (for new 1/4-20 bolts)

.201, .203 OR 13/64 split point drill bit

1/4-20 tap DO NOT USE A DRILL/TAP COMBO, THE DRILL IS TOO SHORT
